ESDT 15 Pilot Scale Spray Dryer
The model ESDT 15 is an innovative spray dryer designed specifically for the product development and small-scale production environments.
The ESDT 15 is harmonised to other models within the pilot scale range, being an all stainless steel appliance from feed tank to powder collection receptacle.
They can also be supplied as modern cost-effective replacements for client’s existing evaporation plants which may no longer be compliant with current legislation etc.
Minimum mechanical installation is required along with connection to electrical and compressed air utilities prior to commencing production.
The unit comes as standard in a food grade finish with 316 stainless steel product contact surfaces, 304 stainless steel support frame, platforms, hand railing and ladders.
A pharmaceutical grade finish is also available as an upgrade option.
| Inlet Temperature | OC | 150 - 250 |
|---|---|---|
| Power Supply | V - ph - Hz | 380/440 - 3 - 50 |
| Electrical Load | kW | 24 (installed) |
| Maximum Solids | % | 60 (subject to viscosity) |
| Height of Unit | mm | 3826 |
| Width of Unit | mm | 2246 |
| Depth of Unit | mm | 2637 |
| Equipment Weight | Kg | 1834 |
| Shipping Container | L - W - H | Details on application |
| Shipping Weight | Kg | 1950 approx |

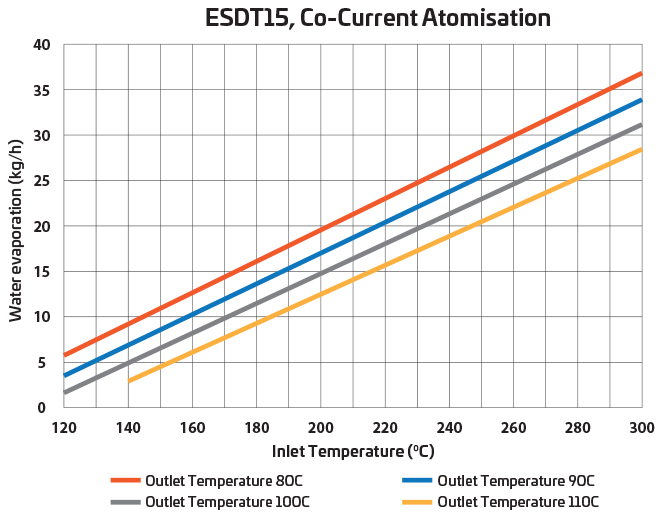

| Evaporation Rate | Kg | 15 (200/90) |
PESDT 15 Pilot Scale Spray Dryer
Industries
Food & Flavours
Dairy
Battery Tech
Chemical
360 Degree Manufacturing
European SprayDry Technologies highly skilled production and fabrication department oversee the manufacture of our equipment from stainless steel and other speciality materials.
For more information
download the

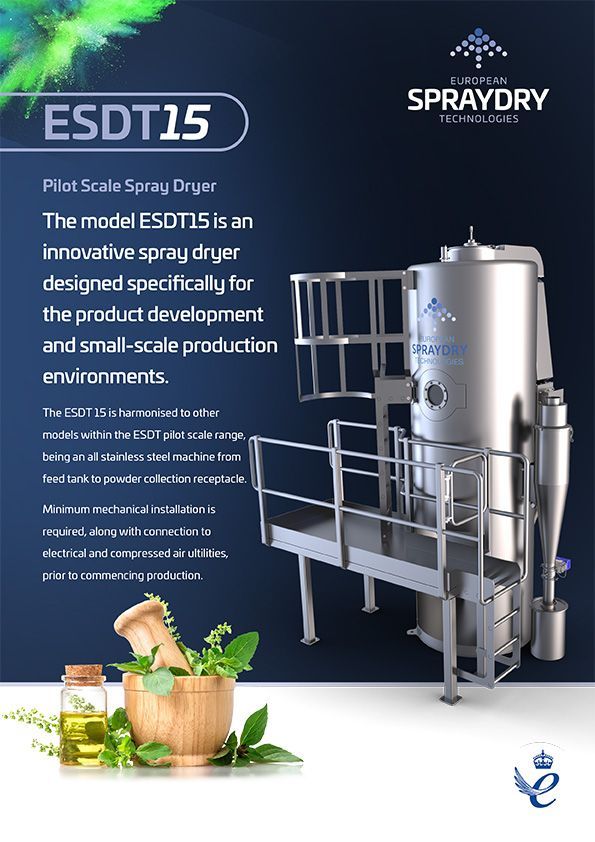

Spray Dryer brochure
