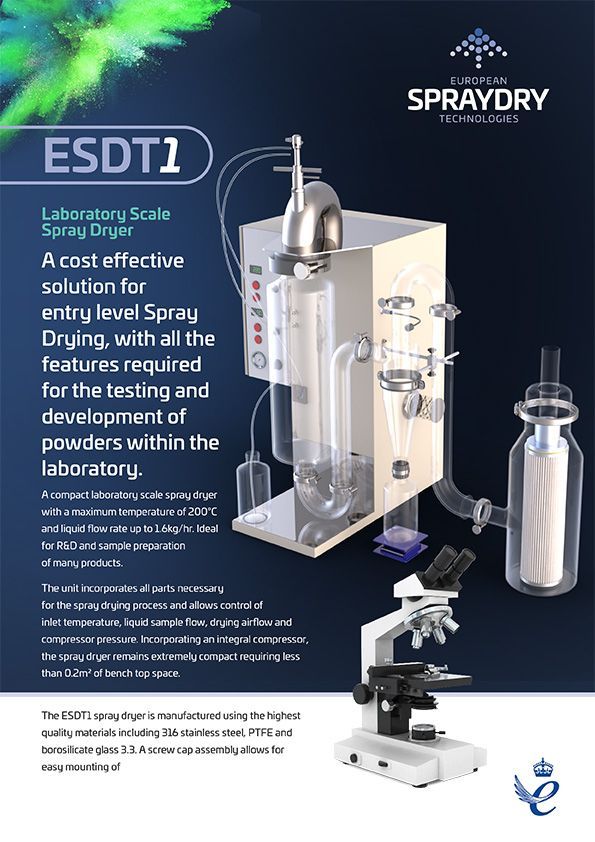

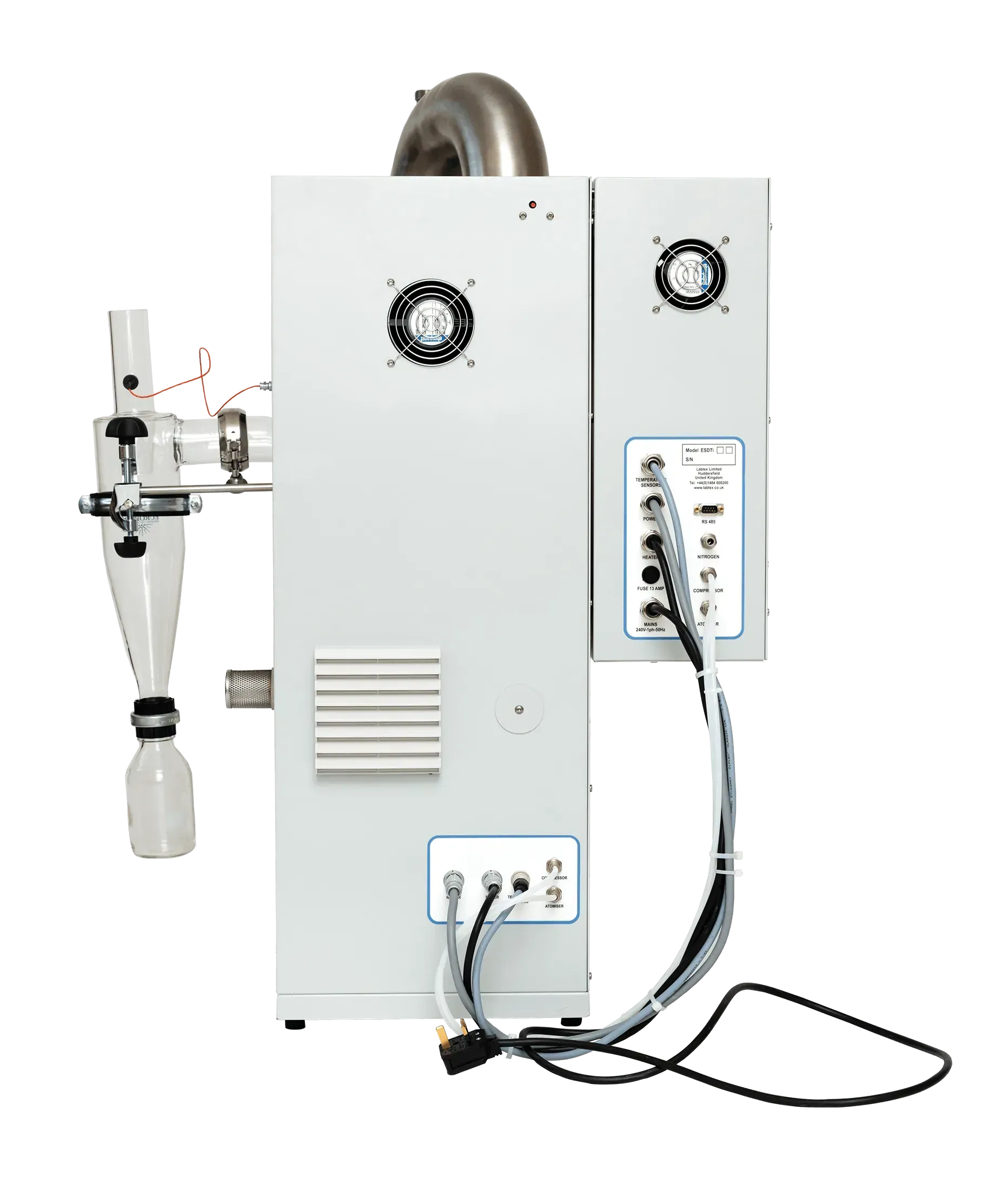

ESDT 1
LABORATORY SCALE SPRAY DRYER
The ESDT1 laboratory scale spray dryer is simple to use and has been specifically designed for use in both research and educational environments.
A cost effective solution for entry level Spray Drying, with all the features required for the testing and development of powders within the laboratory.
The ESDT1 is a complete solution with its own integral compressor for atomisation delivered by our 3 fluid nozzle atomiser and requiring a power supply from any 13Amp electrical socket - just plug in and go.
The unit has simple controls with clear illuminated displays for inlet and exhaust temperatures.
The feed flow and temperatures are PID controlled for accuracy. Contact parts including the chamber, interconnected ducting and cyclone are constructed form hygienic borosilicate glass allowing contact parts to be stripped in minutes ensuring a fast turnaround on completion of a deep clean.
A robust casing houses electrical heaters, fans, compressor and an integral peristaltic pump.
Heating, air flow and compressed air is fully adjustable as is the peristaltic pump designed to deliver variable feed rates to the ESDT three fluid nozzle.
The ESDT 1 is compact requiring less than 0.2m2 of bench space and remains extremely operator friendly making it an ideal platform for training operators.
The unit is supplied in 2 variants, standard co-current operation or with a closed circuit for inert atmosphere production.
| Inlet Temperature | OC | 150-200 |
|---|---|---|
| Power Supply | V-ph-Hz | 230-1-50/60 |
| Electrical Load | kW | 3 |
| Maximum solids | % | 60 subject to viscosity |
| Height | mm | 1040 |
| Width | mm | 330 |
| Depth | mm | 500 |
| Equipment weight | Kg | 52 |
| Shipping Container | L-W-H | 1260 - 840 - 890 |
| Shipping weight | Kg | 100 |
